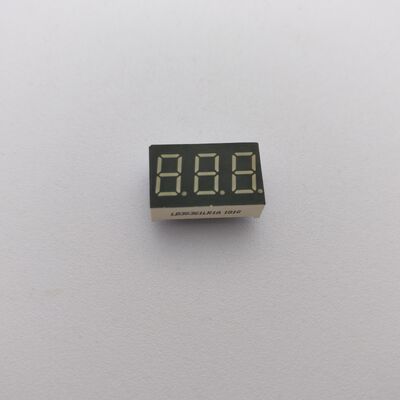

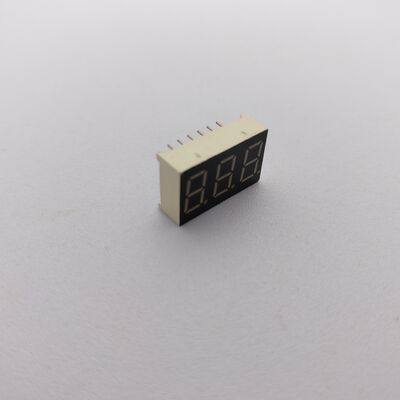

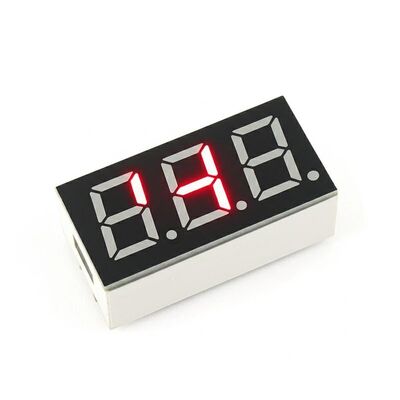

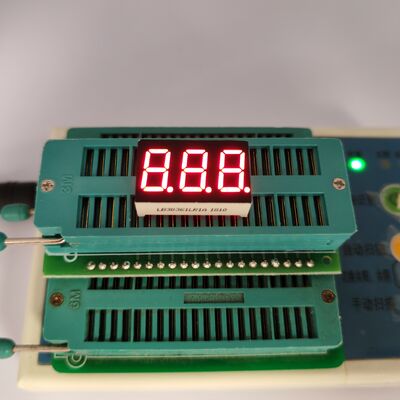

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring

Merknaam:	LIGHTBO
Modelnummer:	LB30361LR1A
MOQ:	1000
Prijs:	Negotiate
Betalingsvoorwaarden:	T/T, Western Union
Toeleveringsvermogen:	20000 stuks/dag

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

Shenzhen, China

Certificering:

ISO9001&RoHS

Gebruik:

Binnen,buiten,binnen/buiten,bureau,buiten en binnen

Weergavefunctie:

Afbeeldingen, animatie, video, cijfer 0-9, temperatuur

Helderheid:

Automatisch dimmen door lichtsensor, 4000.7000 cd/m², 5000 ~ 6500 mcd, hoge helderheid

Garantie:

2 jaar,1 jaar

Polariteit:

Gemeenschappelijke kathode

LED-chip:

Epistar,InGan,AlGanlp

Verpakking Details:

Epe+doos

Levering vermogen:

20000 stuks/dag

Markeren:

bright red 3 digit LED display

0.36-inch temperature humidity LED display

7 segment LED display for monitoring

Productbeschrijving

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring

Product Description

Feature	Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring	Other Available Options (Customizable)
Part Number	LB30361LR1A	Can print your part number
Digit Number	3 digits	2, 3, 4, 5, or 6 digits
Digit Height	0.36 inch	0.25, 0.36, 0.39 ... up to 5.0 inch
Color	Red	White, Blue, Pure Green, Yellow-Green, Orange, etc.
Polarity	Common Anode	Common Cathode
Life Span	80,000 hours
Free Samples	Supported
Sample Lead Time	5-7 working days	15-20 days (tooling samples)
Production Lead Time	15-20 working days	Varies by order quantity
OEM/ODM	Supported	Based on your drawing or idea
LOGO Printing	Supported	Based on your drawing or idea
MOQ	1000 PCS	100-500 PCS accepted for first order

Product Parameters

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd., operating under the brand LIGHT-BO. Driven by innovation, we excel in the full spectrum of display solutions-from research and development to manufacturing and sales. Our 15+ years of OEM/ODM experience, backed by ISO 9001:2015 certification, underscores our unwavering commitment to quality and excellence.

At LIGHT-BO, we are passionate about creating high-value, customized solutions that give our clients a distinct market advantage. We partner with businesses to optimize costs and sharpen their competitive positioning.

Products Applications

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 2
Powering a world of applications-from home appliances and HVAC systems to specialized controllers for refrigeration and climate control-our range of LED displays, including 7-Segment, Numeric, Dot Matrix, and fully Customized solutions, reflects our relentless pursuit of excellence in every detail.

Certifications

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 3

Office and Factory Overview

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 4

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 5

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 7

Company Exhibitions

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 8

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 9

Various transportation methods

Bright Red 0.36-Inch 3 Digit LED Display for Temperature and Humidity Monitoring 10

FAQ

Q1 Are you trading company or manufacturer

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .

Q2 What is your main products

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be

A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.

Q11 Can you do custom design products

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
